Meta Quest hardware overview
Identify your Meta Quest model, understand every button and port, and know what to check before handing a headset to a learner.
Jump to your headset
InvolveXR supports three Meta Quest headset models. Use this guide to identify which headset you have, understand the physical controls, and confirm everything is set up before handing it to a learner.
01Which headset do you have?
The fastest way to tell them apart is the front of the headset.

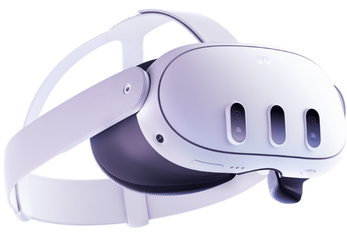

Meta Quest 3
Three vertical pill-shaped sensor areasBest image quality, mixed reality passthrough.
.png)

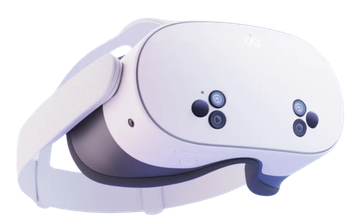

Meta Quest 3S
Three round lenses/sensors on each sideSame power as Quest 3 in a more compact form factor.
.png)

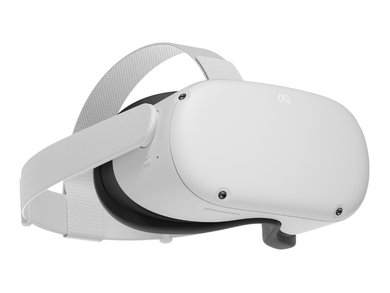

Meta Quest 2
Two small camera/sensor areas near the outer sidesLegacy device, fully supported.
.png)
02Meta Quest 3
The flagship headset
The best image quality of the three, with full-colour mixed reality passthrough. Power button on the right side.
Headset buttons

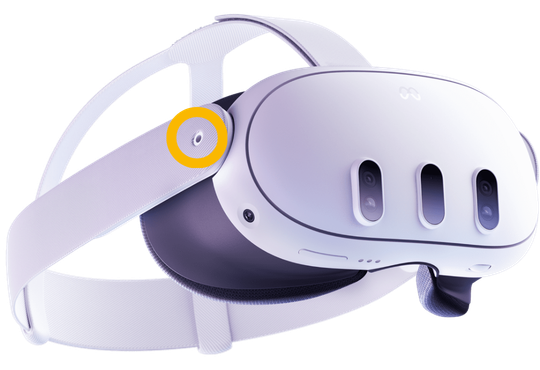

Power button
Right sideHold 3 seconds to power on or off. Short press to sleep or wake.
Volume button
Bottom LeftAdjust volume up and down.
USB-C port
Near power buttonCharging.
Clarity adjustment
Bottom RightUse the dial on the bottom of the headset to adjust the clarity
Audio Jack
Left sidePlug headphones into audio jack on right side of headset
ℹ️
Info
The Quest 3 supports full mixed reality passthrough, so learners can see their real surroundings when the app calls for it. Useful for hybrid scenarios.

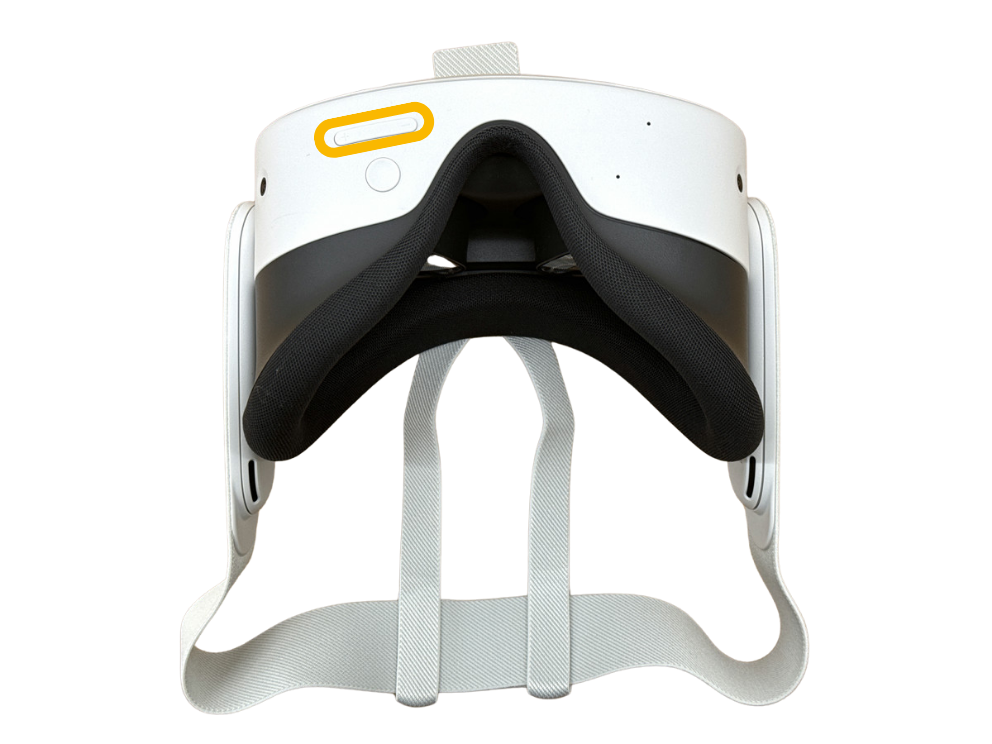

03Meta Quest 3S
Compact, same processor
Same processor and operating system as the Quest 3. The differences: a more compact body, no IPD dial (fixed optics), and the power button is on the LEFT side, which is the most common source of confusion.
Headset buttons

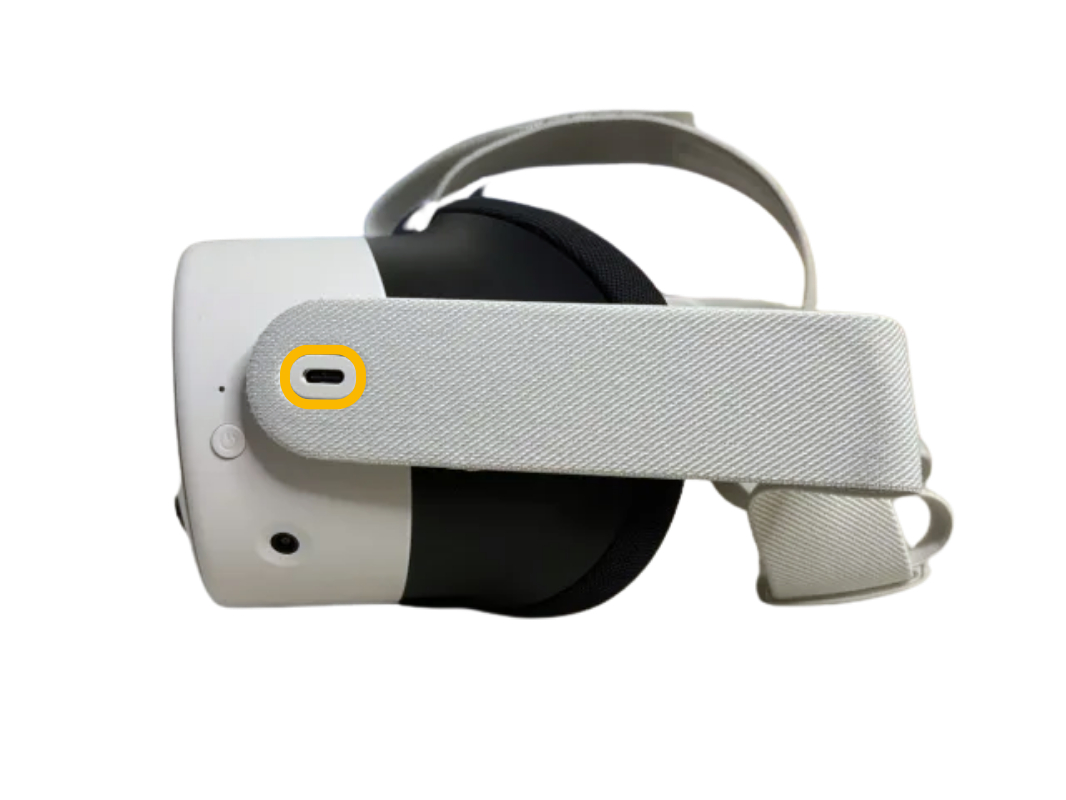

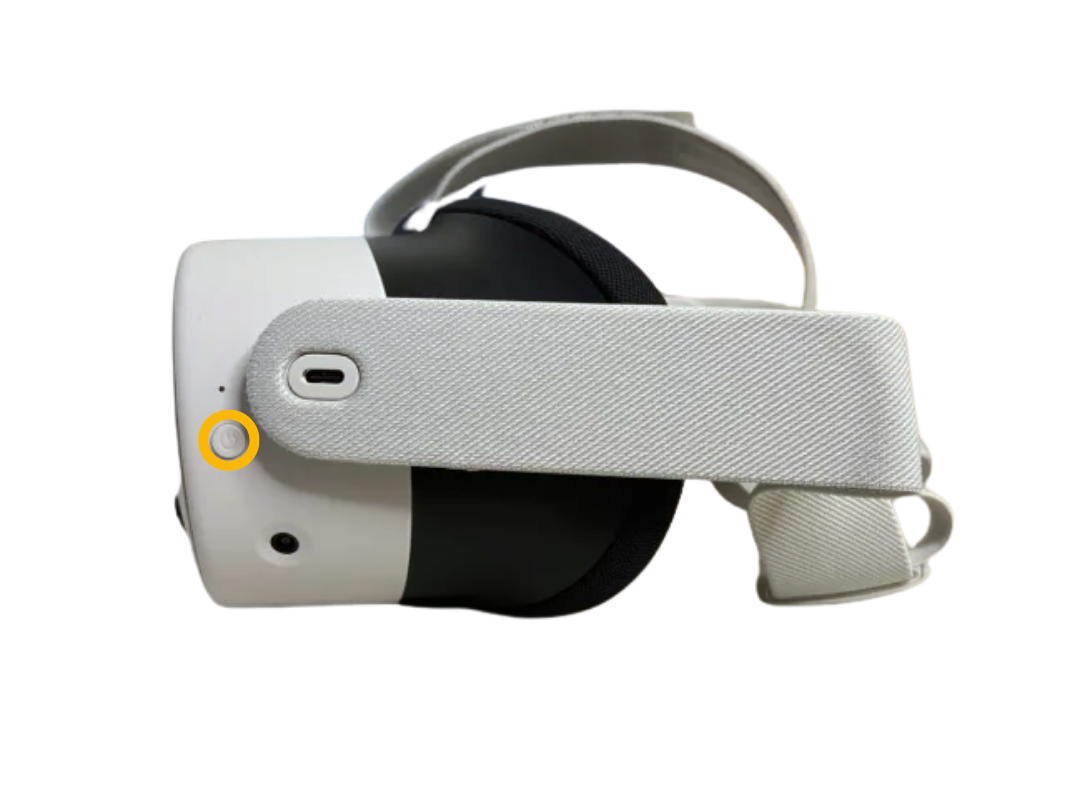

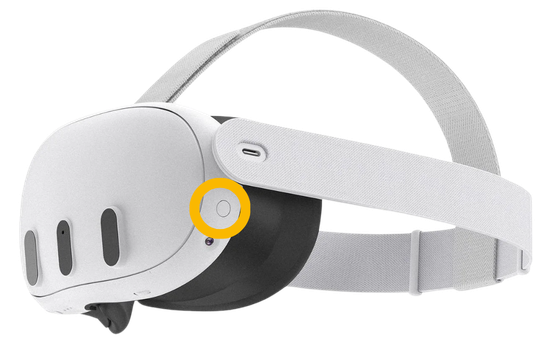

Power button
Left sideHold 3 seconds to power on or off. Short press to sleep or wake.

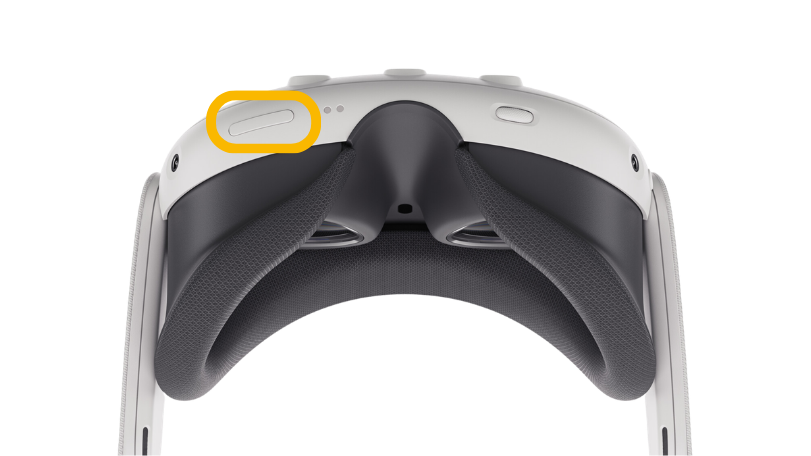

Volume buttons
Bottom rightAdjust volume up and down.
USB-C port
Left sideCharging.

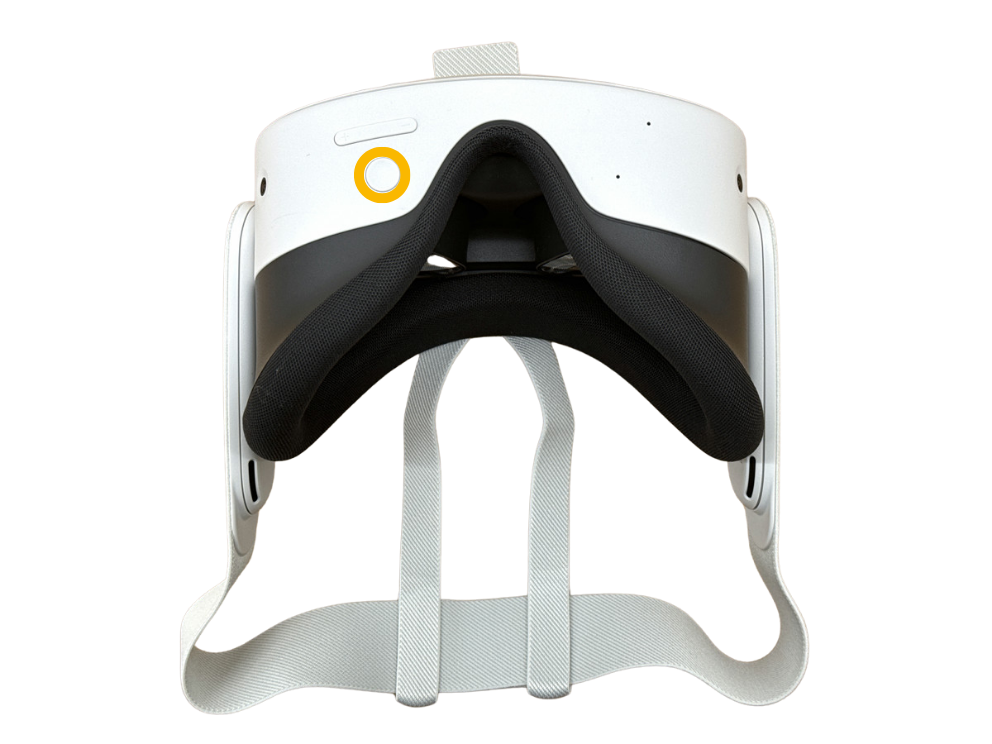

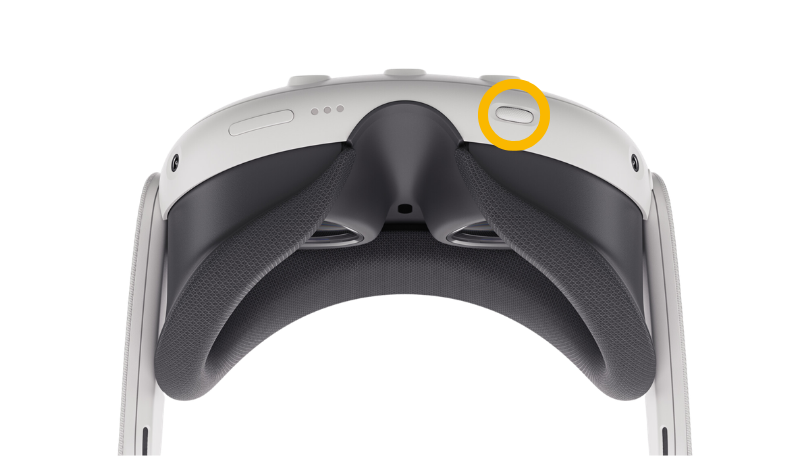

Passthrough button
Bottom rightUse the button on the bottom of the headset to turn passthrough on and off
04Meta Quest 2 (legacy)
Older, still fully supported
Older model, still fully supported by InvolveXR. Lower resolution display and no colour passthrough compared to Quest 3 and 3S, but works well for clinical simulation.
Headset buttons

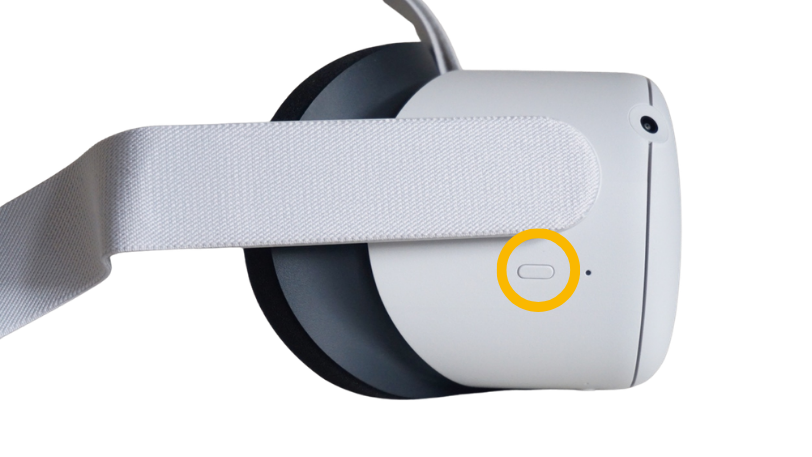

Power button
Right sideHold 3 seconds to power on or off. Short press to sleep or wake.

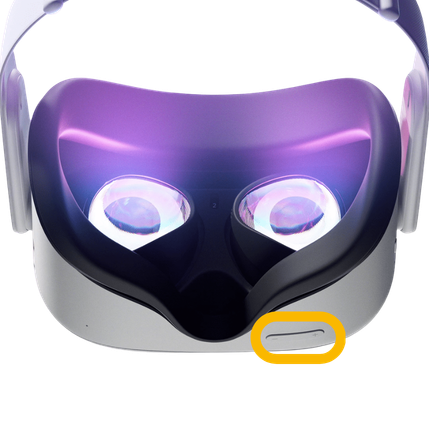

Volume buttons
Bottom RightAdjust volume up and down.

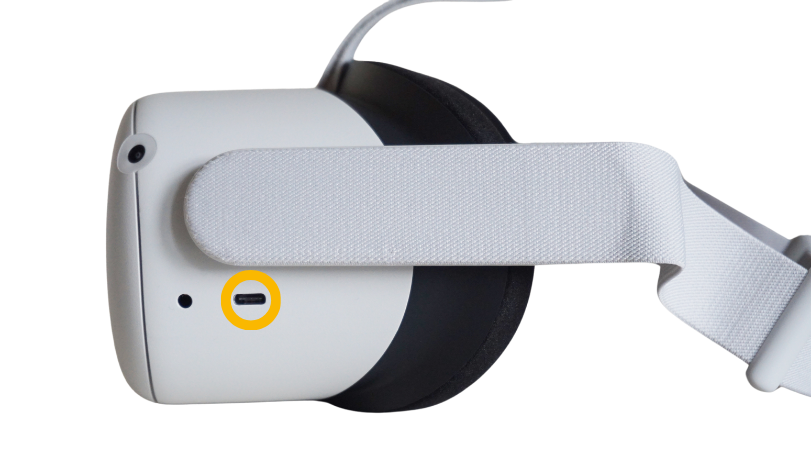

USB-C port
Left SideCharging.

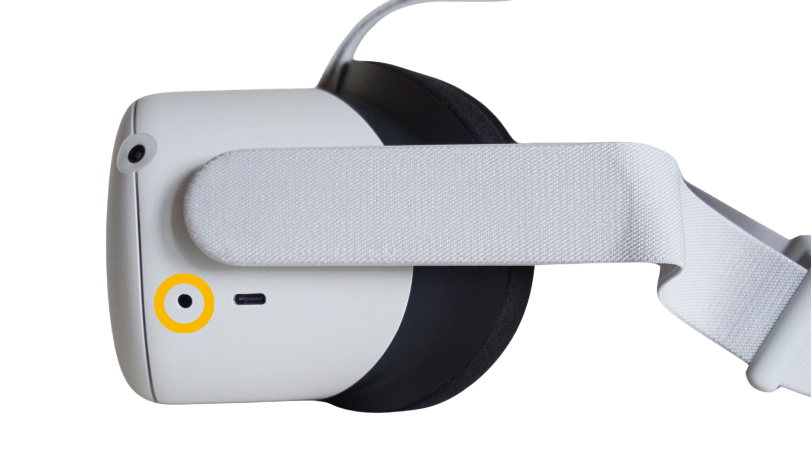

3.5mm audio jack
Left SideHeadphone audio.
05Touch controllers
Every Quest headset ships with a left and right Touch controller. The button layout stays consistent across generations, so learners can move between headsets without relearning the controls. What changes between models is the shape of the controllers themselves.
Meta button
Trigger buttons
Joysticks
Face buttons (B, A, X, Y)

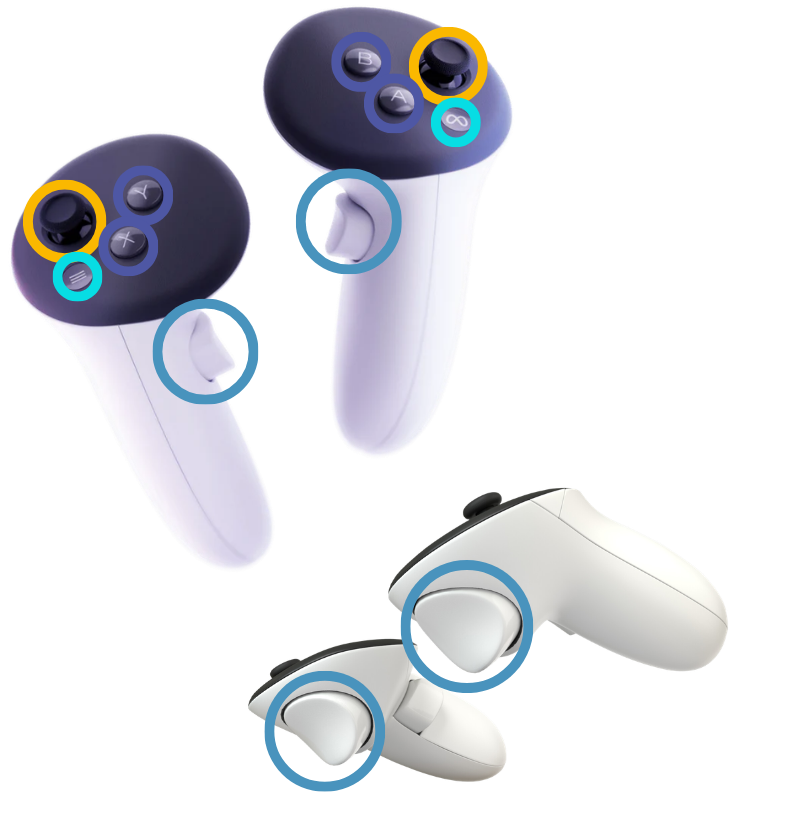

Quest 3 and Quest 3S controllers
Ringless design with the sensors moved into the body of the headset. The Meta button is indented on the right controller and acts as a home button in every app. Quest 3 and Quest 3S ship with the same controllers.
Buttons and what they do
Joysticks
ThumbScroll through menus and move around the environment.
Trigger buttons
Index and middle fingerGrab objects and confirm ("do") actions in the simulation.
B button
Right controllerPress and hold to speak with virtual characters.
X button
Left controllerBring up tool tips.
Meta button
Right controllerIndented button. Returns to the Meta system home in any app. Learners should not press this mid-session unless directed.
Menu button
Left controllerPauses the current scenario.

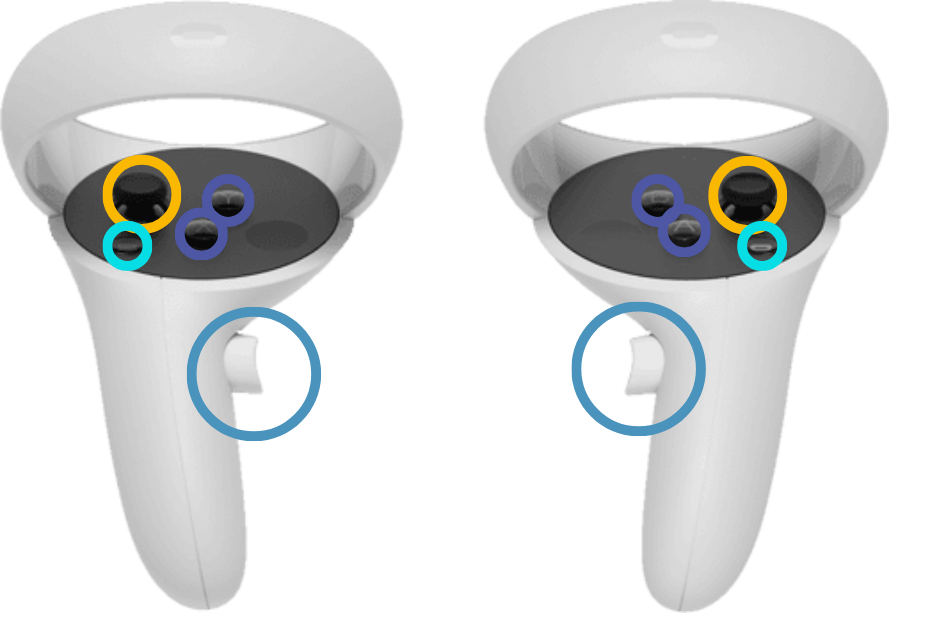

Quest 2 controllers
Older ring-shaped design with a flat Meta button. The button map is the same as Quest 3, so the controls transfer directly if a learner switches headsets.
What's different on Quest 2
Tracking rings
Top of controllerThe tracking sensors sit in the rings above the controller. Keep them clear of hands and lanyards.
Meta button
Flat, not indentedSame job as Quest 3, but sits flush with the controller rather than being indented.
Everything else
Joysticks, triggers, B, X, and menu button all work the same way as on Quest 3.
💡
Tip
The B button for speaking and the Meta button for going home are the two your learners will use most. Point these out during onboarding.

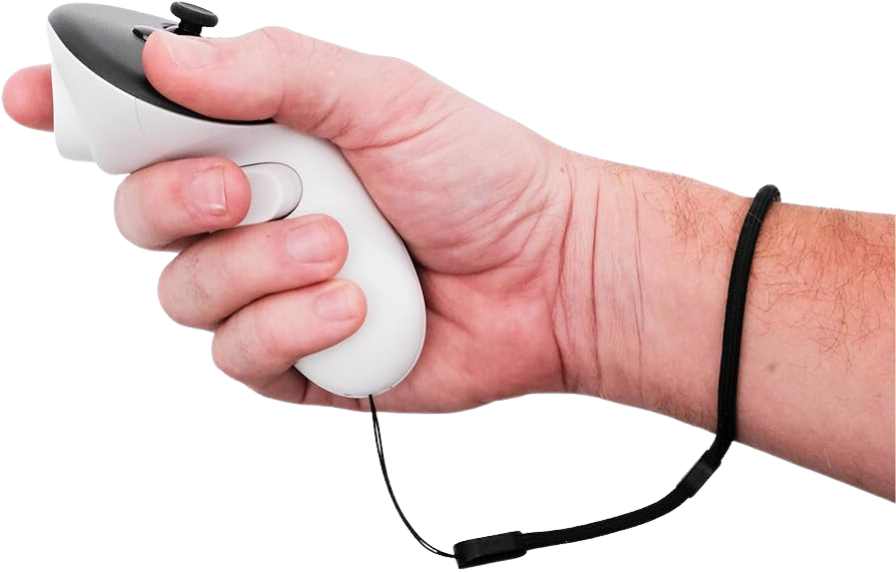

How to hold the controllers
A relaxed grip keeps hand-tracking accurate and stops the wrist strap from swinging into the sensors. Coach learners through this the first time they put on a headset.
How to hold
- Grip the controller comfortably with fingers on the triggers
- The middle triggers face inward, towards each other
- Rest thumbs on the joystick and face buttons
- Hold securely, but stay relaxed for smooth interaction
⚠️
Wrist strap
The wrist strap should be snug, not tight. If it swings loose it can knock into the tracking sensors and cause hand jitter during a scenario.
06Before handing a headset to a learner
Pre-session checklist
- Headset fully charged (LED solid green means full)
- InvolveXR installed (search "Healthcare" in the Quest App Library)
- Connected to your facility Wi-Fi
- Guardian boundary set up in your session space
- Lenses adjusted for learner's IPD (Quest 3 and Quest 2 only)
- Controller batteries checked
⭐
Best practice
Charge headsets overnight before session days. A Quest at 20% will drain before a 30-minute scenario ends.
🧞
You know your hardware.
Next up: putting the headsets in a room, and getting learners in.
